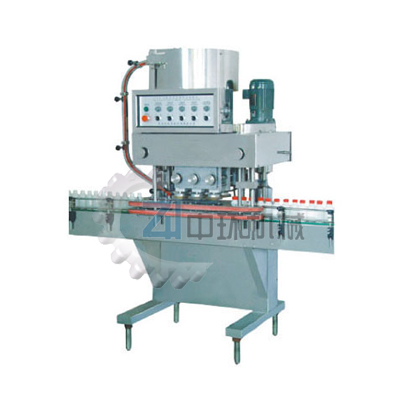

全自动直列式旋盖机ZHT-A型
ZHT-A型全自动直列式旋盖机
本机适用于多种材质，多种几何形状的容器，如塑料瓶、玻璃瓶、金属瓶等；在需要更换瓶或盖的时候，只要调整个别零件的位置即可，无需更换任何配件,在旋盖过程中可以做到无瓶不下盖。理盖器、输送机、旋盖机、夹瓶皮带速度可分别变频调速，适应在规定范围内的各类规格的旋盖。(附：特殊规格定制即可)。本机符合GMP标准要求。
电 源：AC 220V；380V；50H2
功 率：2.2Kw
生产速度：0～6000瓶／小时
适用瓶径：Φ35mm－Φ100mm
适用盖子：Φ12mm－Φ50mm
重 量：650kg
外型尺寸：2000mm × 850mm × 2050mm
ZHT-A Fully Automatic Inline Cap Tightening Machin
This machine is suitable for various material and different shape containers. Such as plastic bottles, glass bottles, and metal bottles. If we want to change different material,bottles or caps for capping, we don’t need replace any components, just adjusting the location of several components. No caps will be dispatched, if there is no bottle in the place. Cap elevator, conveyor, cap tightening machine and bottle clamping strap can be adjusted to meet the tightening requirements for various bottles and caps . The machine is made of excellent quality stainless steel, also applied to GMP standard requirement. (Custom-tailoring diversified for special specification)
Current supply: 220 V ;50Hz (or according to client voltage requirement)
Power: 2.2kw
Production speed: 0～6000 bottles/hour
Container month diameter: Φ40mm-Φ100mm
Suitable Cap diameter: Φ20mm-Φ50mm
Machine Weight : 650 KGS 7. Machine Dimension (L×W×H): 2000mm x 850mm x 2050mm
