单头液体灌装机ZHDY
ZHDY 单头液体灌装机
该机为半自动活塞式液体灌装机。
该机设计合理，机型小巧，操作方便，气动部分均采用德国FESTO和台湾AirTac的气动元件。
物料接触部分均采用316L不锈钢材料制成，符合GMP要求。
灌装量和灌装速度均可任意调节，灌装精度高。
灌装闷头采用防滴漏及升降灌装装置。
技术参数
电 源: 220/110V 50/60Hz
气 压: 0.4-0.6MPa
灌装速度: 5-20瓶/分
灌装精度: ≦±1﹪
可选机型: 20-125ml 50-500ml 250-1000ml 500-2500ml 500-5000ml

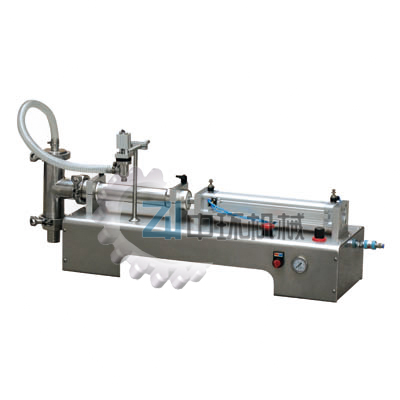

ZHDY One Head Liquid Filling Machine
This machine is the semi-automatic piston type pasty liquid filling
This machine is reasonable in design, small and exquisite in model, saving the place, the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan’s AirTac.
The part contacting materials is made of 316L stainless steel
Both filling volume and filling speed can be adjusted, with high filling accuracy.
Filling head adopts anti-leakage and lifting device.
Technical Parameter
Power supply: 220/110V 50/60Hz
Air pressure: 0.4-0.6MPa
Filling speed: 5-20 Bottles/min.
Filling accuracy: ≦±1﹪
Filling range: 20-125ml 50-500ml 250-1000ml 500-2500ml 500-5000ml
