全自动捆扎机WG系列

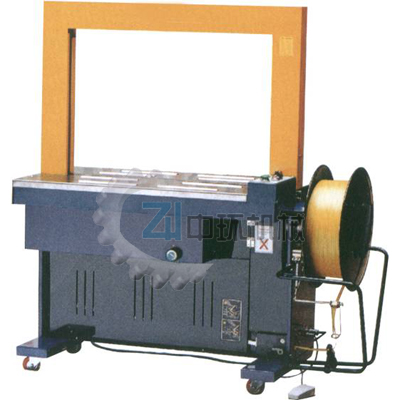

WG系列全自动捆扎机
WG系列全自动捆扎机具机械制造精确度高、结构严谨、打包牢固、速度快、故障率低、寿命长等优点、可使用超薄机带（0.6-0.7MM）。可配流水线作业使用。
主要技术参数
| 型号 Model | WG-22XN |
| 捆紧力 Strapping tension | 5-90kgs |
| 捆扎速度 Strapping speed | 2.0sec./strap |
| 机用带宽度 Strap width | 8-19mm |
| Arch size / Chute size | W850*H600mm |
| 供给电源 Power supply | 3P 380/50HZ |
| 耗用功率 Power consumption | 0.85KVA |
| 机器尺寸 Machine size | 141*160*154cm |
| 机器重量 Machine weight | 250kgs |
WG Type Automatic Strapping Machine
Easy Maintenance: No Greasing, Mechanism is stable and durable, Easy operation.
Tension Adjustment: Can be adjustable at will, Max. Tension is over 90 kg.
Precision Structure: Main machine’s component is made of aluminum alloy. Control System is compatible.
Add on a safety device, built for 24 hrs continuous operation.
Easy loading or unloading: To load or unload the strapping roll is convenient due to the dispenser is placed outside.
WG-22XN Extensive applications: can be independent operation or combine with other machines for unmanned production or auto packaging systems.
Optional: any arch size.
Technique Parameter
| Model | WG-22XN |
| Strapping tension | 5-90kgs |
| Strapping speed | 2.0sec. /strap |
| Strap width | 8-19mm |
| Chute size | W850×H600mm |
| Power supply | 3P 380/50HZ |
| Power consumption | 0.85KVA |
| Machine size | 141×160×154cm |
| Machine weight | 250kgs |
